Electrode Brackets

Brackets are available to mount all electrode holders.

Brackets can be for 1, 2 or 3 electrode holders. Multiholders always use single holder brackets. Steady electrode brackets are used to prevent any lateral movement of the electrode. These are usually single brackets with insulators to prevent detritus bridging between electrodes in contaminated liquids.
Separators are available for multiholders.

Brackets are manufactured in galvanised mild steel or stainless steel. Steady brackets in contact with potable water are in 316L stainless steel
Brackets can be customised to specific requirements.

As a guideline for ordering purposes the following holders use the appropriate brackets

Brackets for use with HPE7 Electrode Holders

Brackets        Type           Material
    71                       single              Galv MS
    71/SS                 single              SS 316
    72                       dual                 Galv MS
    72/SS                 dual                 SS 304
    73                       triple                Galv MS
    73/SS                 triple                SS 304
    75                       steady             Galv MS
    75/SS                 steady             SS 316

Brackets for use with E14 multi holder

Brackets       Type           Material
    71                      single               Galv MS
    71/SS                single               SS 316

Brackets for use with E22 Electrode Holder

Brackets       Type           Material
   71                      single                Galv MS
   71/SS                single                SS 316

Brackets for use with Alarum

Brackets       Type           Material
   71                      single                Galv MS
   71/SS                single                SS 316

Brackets for use with E13 Multi holder

Brackets      Type            Material
   81                     single                 Galv MS
   81/SS              single                  SS 316
   218A/SS          steady                 SS 316
   214A                separator            PVC

Brackets for use with HPE8 Electrode Holders

Bracket        Type            Material
81                       single                 Galv MS
81/SS                 single                 SS 316
82                       dual                    Galv MS
82/SS                 dual                    SS 304
83                       triple                   Galv MS
83/SS                 triple                   SS 304
85/SS                 steady                SS 316

Gallery

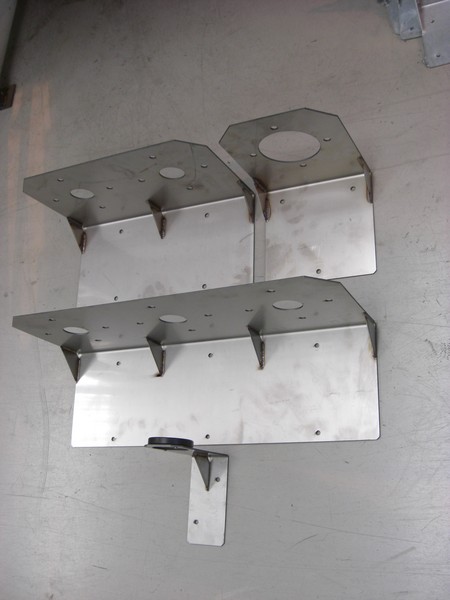

Brackets for E13 Multiholder

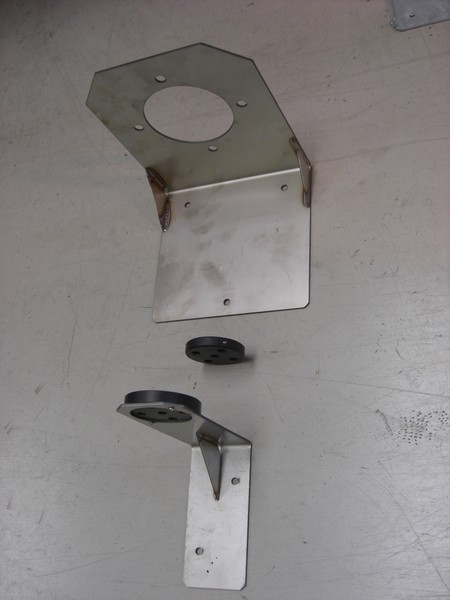

Brackets for HPE8 and E12 Holders

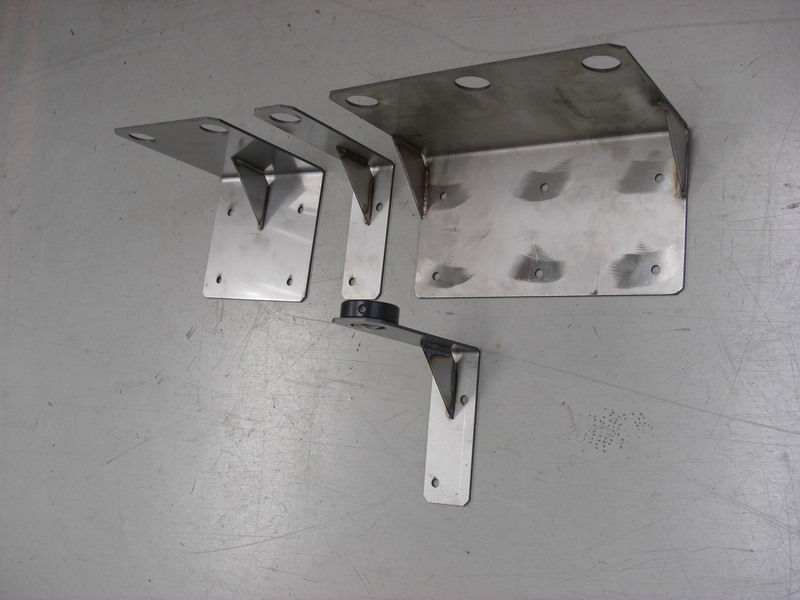

Brackets for HPE7

Holder Mounting Brackets

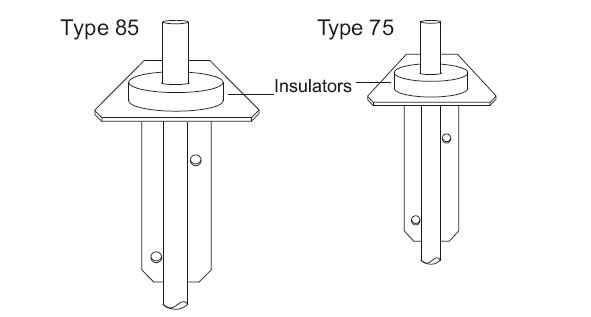

Electrode Steady Brackets

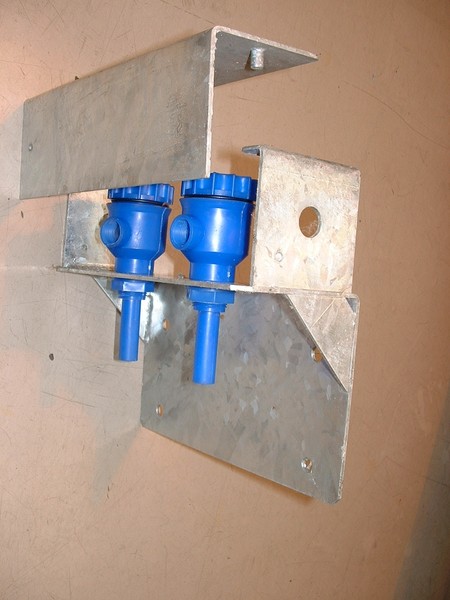

Customised Bracket protecting Electrode Holders
