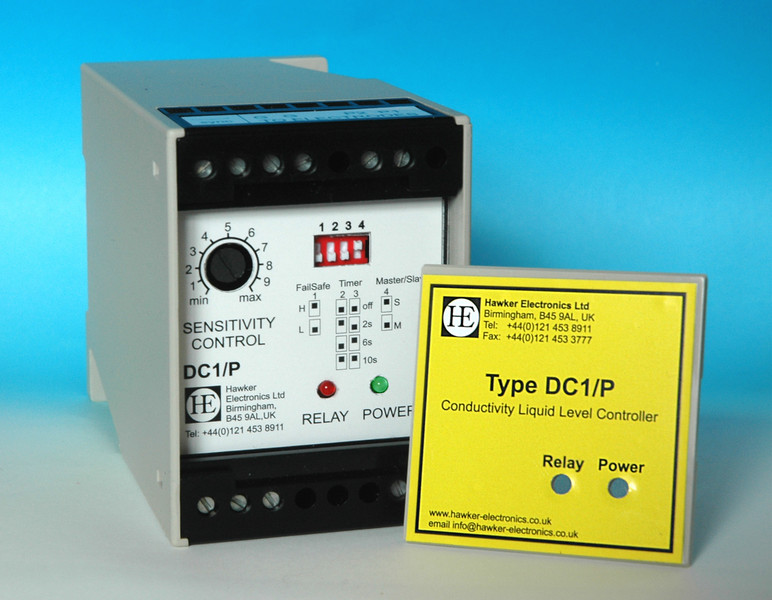

DC1/P Controller for 10 to 27 volt DC operation

DC1/P

Conductivity Level Controller

DIN rail mounted level controller with close switching differential. Fully adjustable sensitivity between 200 ohms to 18,000 ohms. Switch selectable fail to safe operation. One set of volt free changeover contacts with LED for relay operation and also a power on LED. Selectable Timer to allow run on/run off and avoid problems due to wave action/splashing. AC signal to the probes to avoid electrolysis. Supply voltage 10V to 27v DC.


  • Suitable for a wide range of Conductive liquids e.g. Sewage, Water, Acids etc
  • Precise level detection with no 'Dead Band'
  • Protection against dry running
  • Prevents pump overrun, reducing operating costs
  • Ignores electrode fouling
  • Simple low cost installation
  • Wide selection of electrodes and mounting accessories
  • DC Powered
  • Timer function
